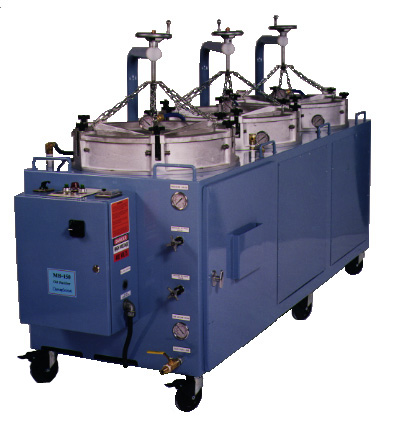

Oil Purifier Model: MB-150 for oil reservoir size up to 2,000 to 3,000 gallons(7,570 liters to 11,355 liters) .
 |
Example
: For AW 46 hydraulic oil with oil reservoir size up to 2,000
gallons(7,570 liters). Completed clean oil turnover means that almost 100% of oil contamination such as minute particulate, dissolved water and oil oxidation were removed from the lubricating oil, rather than having to replace the old oil with clean new oil in customer's oil reservoir. |
MB-150 is suitable for any industrial equipment that has an oil reservoir up to 2,000 to 3,000 gallons capacity. It is designed to be installed as a dedicated oil dialysis unit while equipment is running. This dedicated oil dialysis cleaning method will maintain the highest oil cleanliness on a continuous basis so lubricating oil can be at its best lubricating performance under severe conditions.
MB-150 Specifications *
| Dimension: | 24" dia. filter size x 3 filters, 32"W x 96"L x 28"H |
| Weight: | 800 pounds (363 kgs) |
| Flow Rate: | 100 to 150 GPH depending on oil viscosity |
| Pump Data: | Tandem pump, 4 GPM Positive displacement, 1 HP motor |
| Power Source: | 480VAC-3ph or 220V-3ph or 380VAC-3ph |
| Controller: | Programmable digital controller with EEPROM retained memory and battery backup |
| Electric Enclosure: | NEMA 12 metallic enclosure,
water tight, dust proof, terminal blocks, contactors, all components
are UL and CE approval, meet NEC (National Electric Code) standard
|
| Automatic Control: | Auto stop by differential pressure switch shut down, timer switch, optional oil level switch to detect low oil level |
| Heater: | 13.5 KW, Incoloy immersion heater with built-in thermostat control |
| Alarm Light: | "REPLACE FILTER" alarm pilot light |
| High Temp Alarm: | "AUTO SHUT DOWN" when oil temperature exceed 180 °F |
| Oil Strainer: | Inlet oil strainer for pump protection |
| Safety Device: | Built-in pressure relief valve |
| Discreet Output: | Ready discreet output wired from terminal block to PLC |
| Discreet Input: | Ready discreet output wired from terminal block to PLC |
* Specifications are subject to change without notice.
MB-150 is suitable for any industrial equipment that has an oil reservoir up to 2,000 to 3,000 gallons capacity. It is designed to be installed as a dedicated oil dialysis unit while equipment is running. This dedicated oil dialysis cleaning method will maintain the highest oil cleanliness on a continuous basis so lubricating oil can be at its best lubricating performance under severe conditions.
Applications
Equipment application: The MB-150 can be
used in large plastic injection molder, extruder, all types of large hydraulic
power units, diesel power generator, Z-mill rolling machine, Wire drawing
machine, large gear boxes, lube oil bearings, etc.
Oil application: Hydraulic oil, gear oil,
compressor, transmission oil, Phosphate Ester, fire resistant hydraulic
oil, synthetic oils, insulating oil etc.
