Vacuum Jet Dehydrator Model: VJ-50
 |
VJ-50
is the most economical water dehydrator for oil user having less than
55 gall oil consumption per day. For dedicated water dehydration unit, VJ-50 is excellent for upto 50 gallon oil reservoir that contains up to 3% of water in the oil reservoir such as small gear box etc. VJ-50 can remove water about 1 to 2 gallons of dissolved water per day that entering into the system. VJ-50 can be used as oil dialysis unit while the equipment is running to continuously dehydrate water from oil reservoir that water always leaks into the lubricating system. |
VJ-50 Specifications *

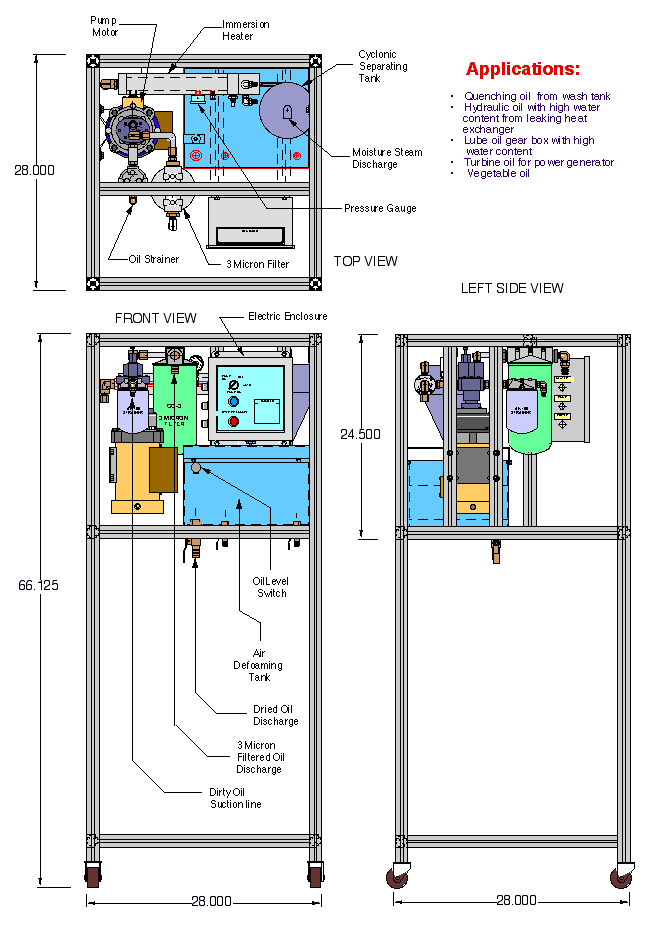

| Dimension: | 28"W x 28"L x 24"H (63" Total height with stand) |
| Weight: | 150 pounds (68 kgs) |
| Water Removal Rate: | 10 oz or 350 cc of dissolved water per hour or 1.5 gallons per day |
| Flow Rate: | 3 GPM depending on oil viscosity |
| Pump Data: | 5 GPM Closed coupled pump, 1/3 HP motor |
| Additional Oil Filtration: | 3 Micron absolute built-in oil filtration |
| Power Source: | 110V-1ph or 220V-1ph |
| Controller: | Programmable digital controller with EEPROM retained memory and battery backup |
| Electric Enclosure: | NEMA 12 metallic enclosure, water tight, dust proof, terminal blocks, contactors, all components are UL and CE approval, meet NEC (National Electric Code) standard |
| Automatic Control: | Auto stop by pressure switch shut down, timer switch shut down for filter replacement, and oil level switch to detect low oil level in the deforming tank |
| Oil Filter Auto Stop: | Timer shut down at 800 hours of oil filtering operation |
| Safety Device: | Pressure switch shut down |
| Heater: | 1,000 Watts, Incoloy immersion heater with built-in thermostat control |
| Heater Interlock: | Heat will not operate if there is no oil flow in the unit |
| Hour Meter: | Built in hour meter reading |
| Alarm Light: | "OVER PRESSURE" alarm pilot light |
| Oil Strainer: | Inlet 100 mesh oil strainer for pump protection |
| Discreet Output: | Ready discreet output wired from terminal block to PLC |
| Discreet Input: | Ready discreet output wired from terminal block to PLC |
* Specifications are subject to change without notice.
Applications
Equipment application: The VJ-50 can be used in plastic injection molder, extruder, blow molder, all types of hydraulic power units for off-road vehicles, mining equipment, earth moving equipment, hydraulic bulldozer, hydraulic power unit for trash trucks, freight loading cranes, marine hydraulic power units, banbury machine, diesel power generator, rotary air compressor, small gear boxes, lube oil bearings, vacuum pump etc.
Oil
application: Hydraulic oil, gear oil, compressor, transmission
oil, Phosphate Ester, fire resistant hydraulic oil, synthetic oils, insulating
oil etc.
